| General | |
|---|---|
| Dimensions | 19 x 9.5 x 3.5" / 48.3 x 24.1 x 8.9 cm |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Display | 2.2" / 5.6 cm LCD |
| Supported Formats | MOV / ProRes 422 / ProRes 422 HQ / ProRes 422 LT / ProRes 422 Proxy |
| Physical | |
| Certifications | IEEE 1588-2008, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10 |
| Power | |
| Power I/O | 2x IEC C13/C14 Input |
| Video Capture | |
| Video Output | 4:2:2 10-Bit via HDMI / RJ45 / SDI/BNC 4096 x 2160 at 24.00/25/29.97/30.00/50/59.94/60.00 fps 3840 x 2160p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Specs | |
| Rack Mountable | Yes 2 U |
| Max Video Output | 4:2:2 10-Bit via HDMI / RJ45 / SDI/BNC Up to DCI 4K at 24.00/25/29.97/30.00/50/59.94/60.00 fps |
| Recording Modes | ProRes/ProRes 422/ProRes 422 HQ Proxy 4096 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1280 x 7200 at 50/59.94/60.00 fps 3840 x 2160p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps |
| Electrical | |
| Input Power | 100 to 240 VDC |
| Interface | |

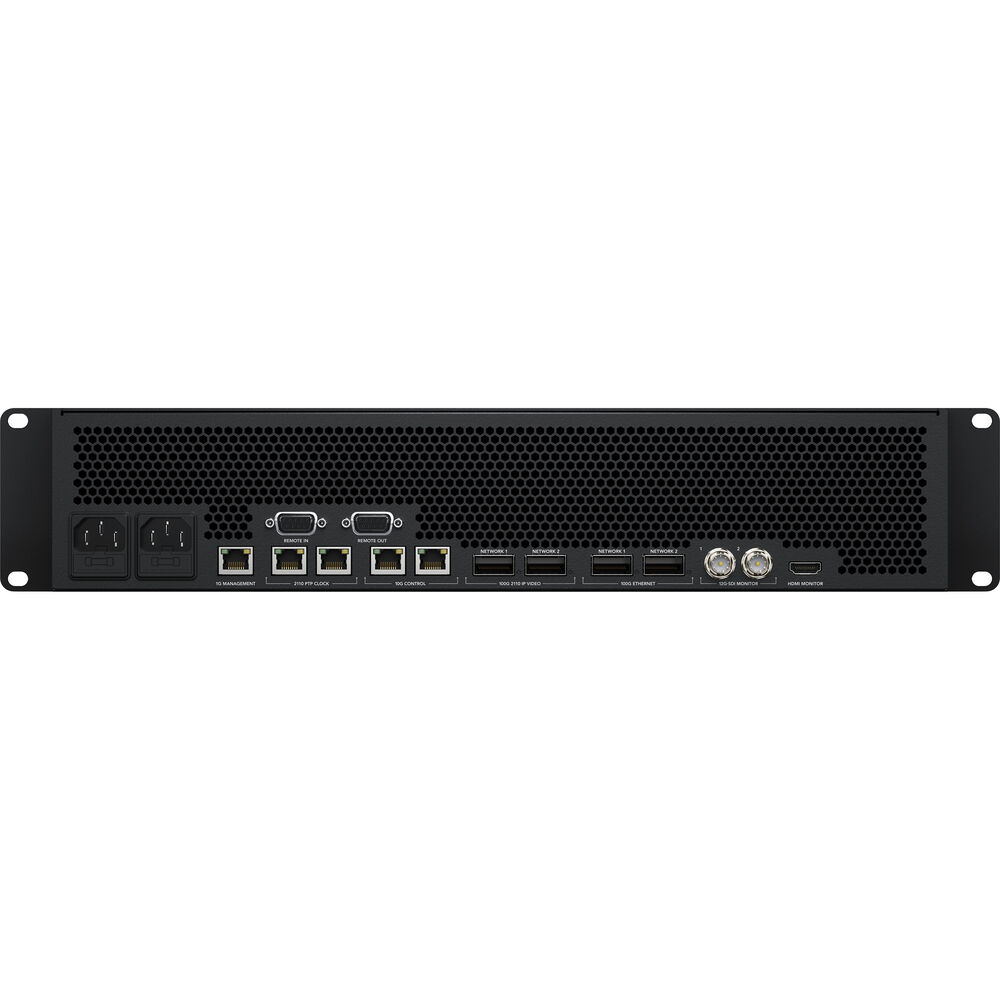

| Video I/O | 2x SMPTE LEMO Fiber SMPTE 2110 Input 2x SMPTE LEMO Fiber SMPTE 2110 Output 2x BNC (12G-SDI) Monitor Output 1x HDMI Monitor Output |
| Audio I/O | 1/8" / 3.5 mm TRRS Headphone/Mic |
| Others | |
| Marka | Blackmagic Design |
Fiyat:
349.375,57 ₺
3500 TL üzeri alışverişlerde kargo bedava
