| Display | |
|---|---|
| HDR Support | Yes: Hybrid Log Gamma |
| Connectivity | |
| HDCP Support | No |
| General | |
| Dimensions | 8.98 x 8.28 x 1.74" / 22.81 x 21.03 x 4.42 cm |
| Weight | 2.87 lb / 1.3 kg |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Packaging Info | |
| Package Weight | 3.82 lb |
| Box Dimensions (LxWxH) | 11 x 10.6 x 3.6" |
| Power | |
| Power I/O | 1x IEC C14 (100 to 240 VAC ) Input |
| Format Support | |
| Video Resolution | BNC Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 4096 x 2160 up to 23.98/24/25/29.97/30/50/59.94/60 fps 3840 x 2160 up to 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080p up to 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080PsF up to 23.98/24/25/29.97/30 fps 1920 x 1080p up to 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i up to 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 720 x 576i at 50 fps 720 x 480i at 59.94 fps HDMI Output (8/10/12-Bit 4:4:4/4:2:2/4:2:0) 4096 x 2160 up to 23.98/24/25/29.97/30/50/59.94/60 fps 3840 x 2160 up to 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p up to 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i up to 50/59.94/60 fps 1280 x 720 up to 50/59.94/60 fps 720 x 576i at 50 fps 720 x 480i at 59.94 fps |
| Embedded Audio | HDMI/LAN (RJ45)/SDI/USB |
| Audio Format | Analog Output: 48 kHz / 24-Bit |
| External Enclosure | |
| System Connection | USB-C (Thunderbolt 3) |
| Software | |
| OS Compatibility | Windows 10 to 11 macOS 13 or Later Linux |
| Interface | |

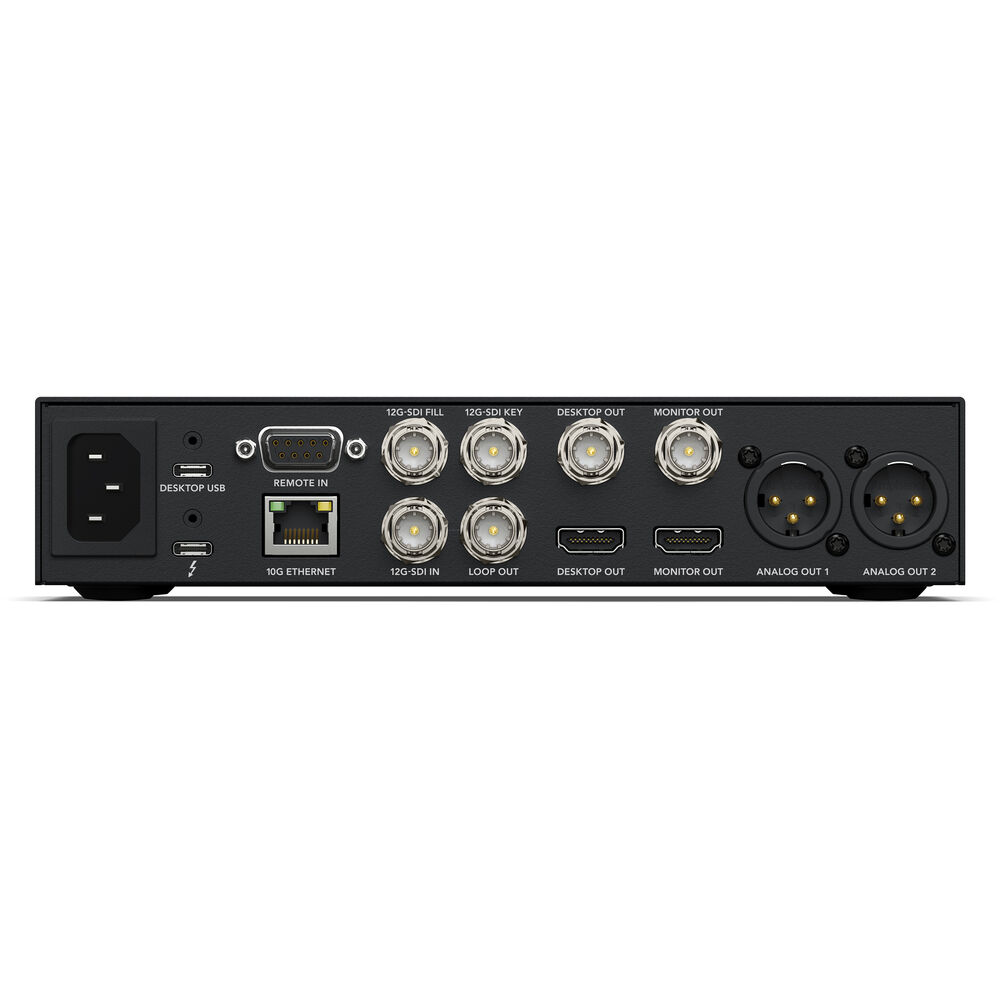

| Video I/O | Input 1x BNC (12G-SDI) Female Output 4x BNC (12G-SDI) Female 1x BNC (12G-SDI) Female (Loop Output) 1x HDMI (Unspecified Signal) Female (Monitor) |
| Audio I/O | Output 2x XLR 3-Pin Analog Female 1x 1/4" TRS Analog Female |
| Other I/O | Input/Output 1x Thunderbolt 3 3.0 / 3.1/3.2 Gen 1 1x USB-C 3.0 / 3.1/3.2 Gen 1 1x RJ45 (10 GbE) Input 1x DE-9/DB-9 (RS-422) |
| Others | |
| Marka | Blackmagic Design |
Fiyat:
73.260,88 ₺
