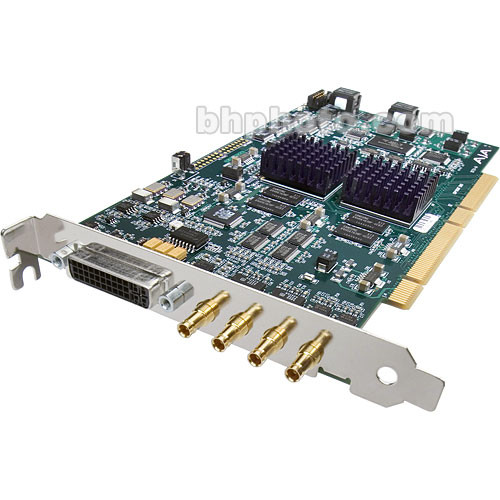

| Type | SDI, HD-SDI, Dual Link SD, HD-SDI 4:4:4 and 4:4:4:4 and HSDL Video Capture and Output Card |
| Compatible with | Adobe After Effects, Premiere Pro, Photoshop CS/CS2, Autodesk Combustion 4, Eyeon Fusion5 |
| Video Formats | SD,525i (NTSC) at 29.97 fps,625i (PAL) at 25 fps,HD,720p at 23.976 fps,720p at 24 fps,720p at 29.97 fps,720p at 30 fps,720p at 50 fps,720p at 59.94 fps,720p at 60 fps,1080i at 25 fps,1080i at 29.97 fps,1080i at 30 fps,1080psf at 23.98 fps,1080p at 24 fps,1080psf at 24 fps,1080p at 25 fps,1080psf at 25 fps,1080p at 29.97 fps,1080psf at 29.97 fps,1080p at 30 fps,1080psf at 30 fps,2K,2048 x 1080p at 23.976 fps,2048 x 1080psf at 23.976 fps,2048 x 1080p at 24 fps,2048 x 1080psf at 24 fps |
| Host Connection | PCI or PCI-X |
| Video System | NTSC/PAL |
| Audio Formats | 16/24/32-bit 48 kHz synchronous,8-channel SDI/HD-SDI embedded audio sample rate conversion on AES inputs (no source synchronization required) |
