| Connectivity | |
|---|---|
| USB | Micro-USB, type-B |
| General | |
| Dimensions | 6.2 x 4.2 x 2.0" / 15.8 x 10.7 x 5.2 cm |
| Weight | 1.3 lb / 570.0 g (not including batteries) |
| Power Supply | Zoom AD-16 power supply, bus power over USB, or 2 x AA batteries |

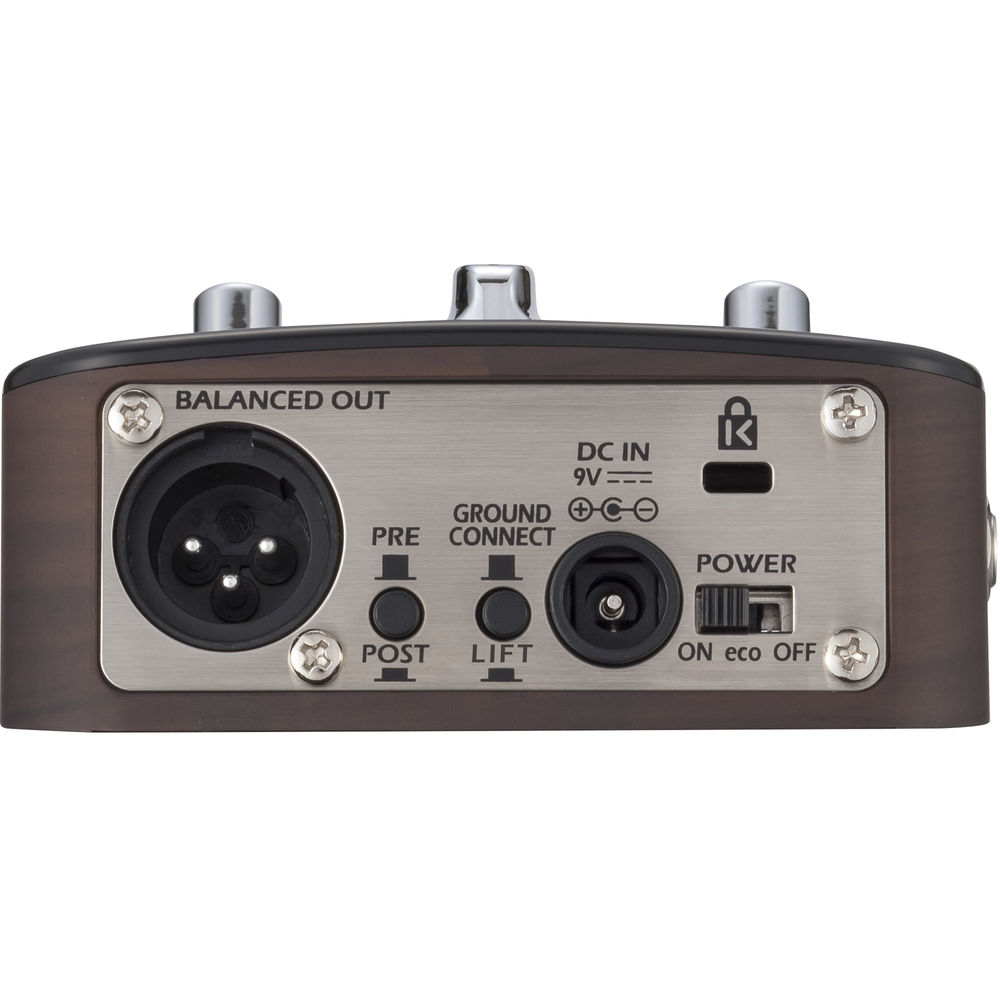

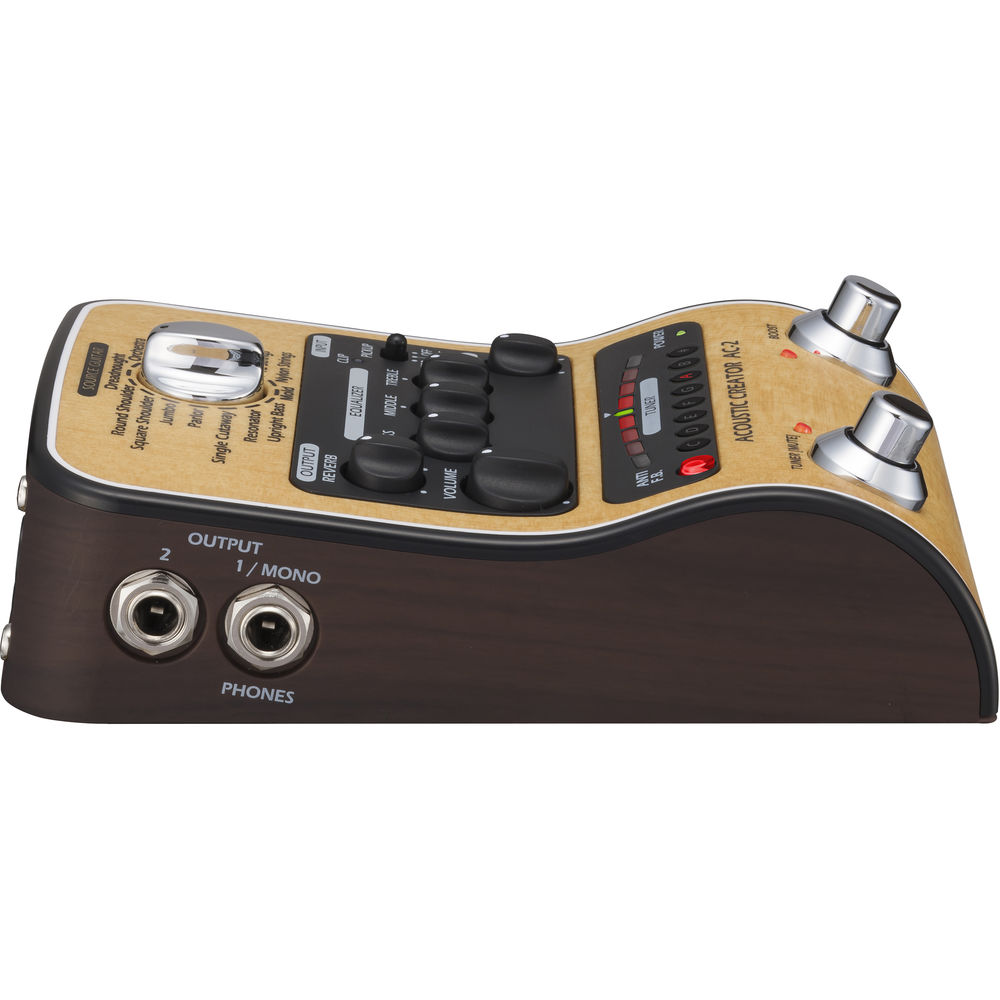

| I/O | 1 x 1/4" input, phone type 1 x 1/4" output, phone type 1 x 1/4" output/headphone output, phone type 1 x XLR output, balanced |
| A/D and D/A Conversion | 24-bit with 128x oversampling |
| Sampling Frequencies | 44.1 kHz |
| Effects | 16 types |
| Signal Processing | 32-bit |
| Frequency Characteristics | 20 Hz to 20 kHz, +1 dB, -3 dB (10-kOhm load) |
| Rated Input | -20 dBu |
| Noise Floor | -100 dBu |
| Packaging Info | |
| Package Weight | 1.9 lb |
| Box Dimensions (LxWxH) | 9.5 x 7 x 2.9" |
| Performance | |
| Maximum Output Level | Output: Line +7 dBu Phones: 8 mW + 8 mW into 32-Ohm load |
| EIN | 120 dBu |
| Specs | |
| Power | 9 VDC, 500 mA |
| Impedance | Input: 10 MOhms XLR output: 100 Ohms (hot-ground, cold-ground), 200 Ohms (hot-cold) 1/4" output, mono: 10 kOhms or higher 1/4" output, headphones: 32 Ohms |
| Others | |
| Marka | Zoom |
Fiyat:
10.458,89 ₺
3500 TL üzeri alışverişlerde kargo bedava
