Konvision KVM-1951W 18.5-Inch Broadcast Monitor

Name: Konvision KVM-1951W 18.5-Inch Broadcast Monitor
Brand: Konvision
SKU: KVM-1951W
Price: 84203.28 TRY
Availability: InStock
Rating: 5 (1 reviews)

0 yorum

Ön Detay

•KVM-1951W, tam video formatlarını destekleyen 18,5 inçlik çok işlevli bir monitördür.
•Dalga biçimi, vektörskop, ses ölçer ve benzeri profesyonel yayın özellikleri sağlar.
•Verimli özellikler, onu post prodüksiyon, düzenleme uygulamaları için iyi bir seçim haline getirir.

Ürün Açıklaması

Teknik Özellikler

Taksit Seçenekleri

Ürün Yorumları

Sıkça Sorulan Sorular

Aksesuarlar

- 1920x1080 resolution, 8 Bit LCD panel
- 12 Bit Video Processing, image no delay
- 3G-SDI 4:4:4 12bit signals (SMPTE 425M A/B)
- 2x2K/3G-SDI inputs and outputs(2K/3G/HD/SD-SDI auto detect)
- 1x DVI-I input, 1x composite video input
- Part Zoom In
- Darkness Check
- H/V Delay, Over Scan, Markers
- Audio Level Meter, Blue/Mono Only
- Remote control: Ethernet/GPI, RS422 In/Out
- Dynamic UMD(TSL3.1/4.0), Time Code Display
- LED Tally Light and On-screen Tally display
- F-key configuration and Key Lock function
- Built-in AC in and DC in power supply
- 3D LUT Color calibration with ColourSpace & CalMAN
- Waveform,Vectorscope for SDI1 and SDI2
- Waveform, Vectorscope for DVI
- Pixel Measurement and Audio Phase
- PBP/PIP(size/position adjustable)
- Picture Flip,Focus Assist
- False Color
- Zebra

Konvision

Markaya Git

Panel

Display Size	18.5"
High Resolution	1920×1080
Aspect Ratio	16:9
Wide Viewing Angle	178°(H) / 178°(V)
Pixel Pitch	0.3×0.3(mm)
Color Depth	16.7M
Back Light	LED
Brightness	350cd/m2
Contrast Ratio	1000:1
Lifetime	≥50000 hours

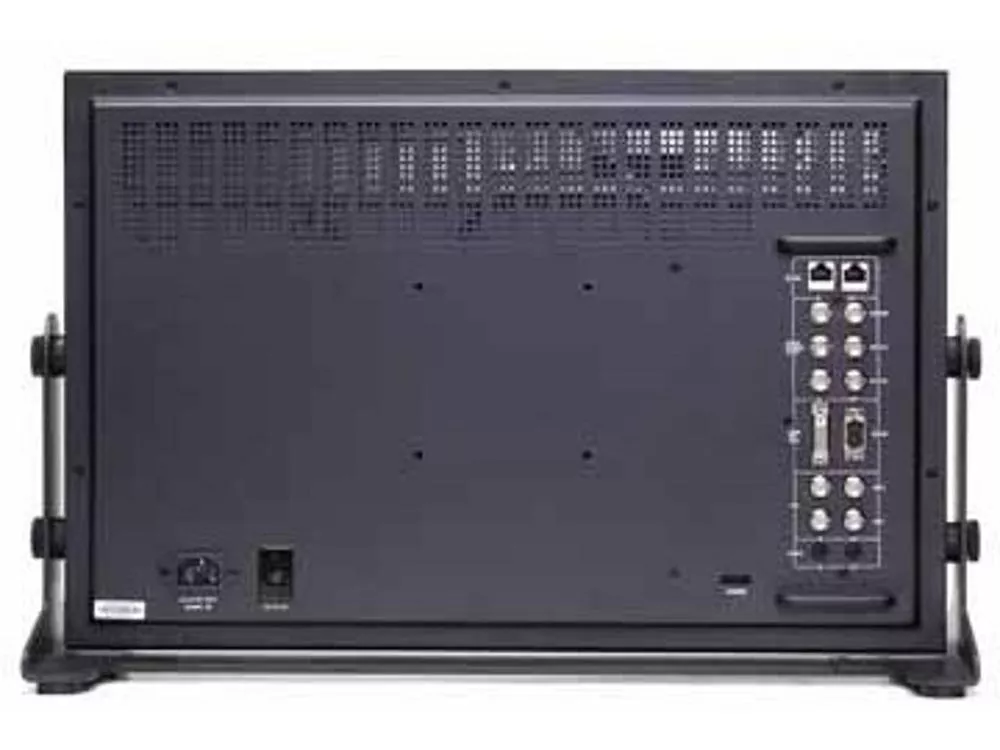

INPUT

2 × BNC	SDI 1/2 Channel Inputs (3G/HD/SD-SDI Auto-Detected)
3 × BNC	YPbPr/Video/ Y/C
1 × DVI-I	DVI/VGA Input
1 × HDMI	HDMI Input

OUTPUT

2 × BNC	SDI 1/2 Channel Outputs (3G/HD/SD-SDI Auto-Detected)
3 × BNC	YPbPr/Video/Y/C

COMPANTIBLE SDI FORMATS
SMPTE-425M-A/B

4:2:2 YCbCr 10-bit	1080P(50/59.94/60)
4:4:4 YCbCr/RGB 10-bit	1080i(60/59.94/50)
4:4:4 YCbCr/RGB 12-bit	1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:2:2 YCbCr 12-bit	1080i(60/59.94/50)
	1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:4:4 YCbCr/RGB 10-bit	720P(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-274M	1080i(60/59.94/50)
	1080P(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-296M	720P(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-260M	1035i(60/59.94)
SMPTE-125M	480i(59.94)
ITU?R BT.65	576i(50)

Audio In / Out

SDI Audio In	16 Channels Embedded Audio
HDMI Audio In	2 Channels Embedded Audio
Audio Meter Display	H/V Audio Level Meter Display(VU+PPM)
Analog Audio Input	3.5mm Headset Switch Cable
Audio Headset Output	3.5mm Headset Jack
Built-in Speaker	2.5W×2

GENERAL

Operating Temperature	-10??50?
Input Voltage	DC 12V/AC 100-240V 50/60Hz
Power Consumption	35W
Power-Saving Mode	Turn off unimportant Key Automatically if no signal input
VESA Installation	VESA MIS-D(100X100mm)
Accessory	Power Cord/Desktop stand
