| Image Sensor |
1x CMOS sensor, equivalent to 3-perf Super 35mm
24.6 x 13.8mm effective size (6.4 x 6.4µm pixel pitch) |
| Effective Pixels |
Approx. 8.29 Mp (3840 x 2160) |
| Total Pixels |
Approx. 9.84 Mp (4206 x 2340) |
| Scanning System |
Progressive |
| Filter |
RGB primary color filter (Bayer array) |
| DSP |
DIGIC DV III |

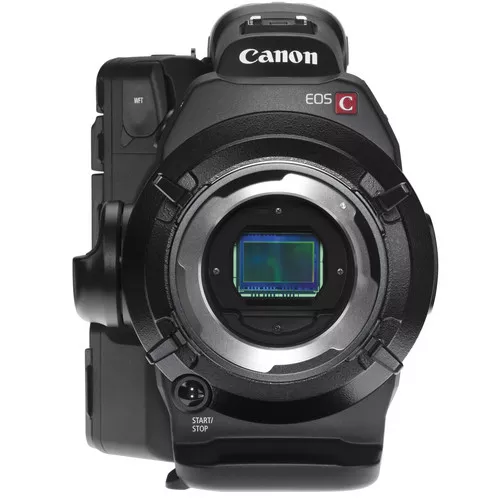

| Lens Mount |
PL |
| LCD Screen |
4" diagonal, 1.23 megapixel color 16:9 rotatable LCD
100% field of view
Adjust brightness, contrast, color, sharpness, and backlight (normal or bright)
A total of 27 display functions can be turned on and off |
| Viewfinder |
0.52" diagonal, color 16:9 LCD, 1,555,000 dots
+2.0 to -5.5 diopter eye adjustment
100% field of view
Viewing angle can be adjusted up and down 60°
A total of 27 display functions can be turned on and off |
| Signal System |
NTSC/PAL |
| Compression |
8-bit MPEG-2 Long GOP (Canon XF codec) |
| Color Space |
4:2:2 at 50 Mb/s recording |
| File Format |
MXF (OP-1a) |
| Recording Formats |
50 Mb/s (CBR) 4:2:2 422P@HL
1920 x 1080: 59.94i/29.97p/23.98p; 50i/25p; true 24p (24.00)
1280 x 720: 59.94p/29.97p/23.98p; 50p/25p; true 24p (24.00)
35 Mb/s (VBR) 4:2:0 MP@HL
1920 x 1080: 59.94i/29.97p/23.98p; 50i/25p
1280 x 720: 59.94p/29.97p/23.98p; 50p/25p
25 Mb/s (CBR) 4:2:0 MP@H14
1440 x 1080: 59.94i/29.97p/23.98p; 50i/25p
|
| Recording Media |
CF Card (Type 1 Only): 2x slots (Movie files); UDMA supported
SD Card: 1x slot: still images, custom picture data, clip metadata, and menu settings 1
Please Note:
Custom picture data and settings are not compatible with data from other Canon models
close
|
| Recording Time |
With 64 GB CompactFlash (CF) card (greater capacity is possible when both card slots are used):
25 Mb/s: 310 min
35 Mb/s: 225 min
50 Mb/s: 160 min
Up to 999 clips can be recorded per card
|
| Audio Recording |
Linear PCM; 2-channel; 16-bit; 48 kHz |
| Built-In Microphone |
None |
| Audio Inputs |
2x XLR inputs (auto and manual level settings), switchable between mic/line
-12, -6, 0, or +12 dB XLR trimming
1x 3.5mm mic jack |
| Channel Selection |
2-channel recording |
| Recording Levels |
-? to +18dB |
| Phantom Power |
Available: +48V |
| Headphone Output Level |
16 settings; volume is muted at lowest setting |
| Tone |
1 KHz tone available; -12, -18, or -20 dB |
| Focusing System |
Manual; autofocus system not available |
| Exposure Modes |
Manual |
| Gain |
Manual: Normal setting -6 dB to 30 dB |
| Shutter Modes |
OFF, Speed, Angle, Slow Shutter, Clear Scan |
| Shutter Speed |
59.94i/59.94p: 1/60 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/4, 1/8, 1/15, 1/30; CS: 59.94-250.70 Hz
29.97p: 1/30 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/4, 1/8, 1/15; CS: 29.97-250.70 Hz
23.98p/24p: 1/24 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 23.97-250.70 Hz
50i/50p: 1/50 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12 1/25; CS: 50.00-250.70 Hz
25p: 1/25 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 25.00-250.70 Hz |
| Shutter Angle |
59.94i/59.94p: 360, 240, 216, 180, 120, 90, 60, 45, 30, 22.5, 15, 11.25
29.97p: 360, 240, 216, 180, 120, 108, 90, 60, 45, 30, 22.5, 15, 11.25
23.98p/24p: 360, 345.6, 288, 240, 180, 172.8, 144, 120, 90, 86.4, 72, 60, 45, 30, 22.5, 15, 11.25
50i/50p: 360, 300, 240, 180, 150, 120, 90, 60, 45, 30, 22.50, 15, 11.25
25p: 360, 300, 240, 180, 150, 120, 90, 75, 60, 45, 30, 22.50, 15, 11.25 |
| ISO Mesafe |
320 to 20,000, 1-stop or 1/3-stop |
| Built-in ND Filter |
Mechanical ND filter system with option of clear or 2, 4, or 6 stops |
| White Balance |
Auto, manual, 2 custom (2000-15,000K in 100K increments), daylight (5400K), tungsten (3200K) |
| Exposure & Focus Aids |
Peaking (2 types), Zebra Pattern, Magnify, Edge Monitor Focus Assist, Black and White Mode 2
Please Note:
Zebra can be output via the SDI or HDMI jack (HD only)
close
|
| Playback |
Index Displays: Index Display, Normal, "OK Mark" Index, "Check Mark" Index, "Shot Mark" Index, Expand Index, Photo Index
Clip Playback: Forward Search (5x, 15x, 60x), Reverse Search (5x, 15x, 60x), Forward Frame Advance, Reverse Frame Advance, Record Review, Clip Jump (Forward and Backward), Skip Playback
Playback Functions: Inter-Media Copy (Single Clip, All Clips, Last Clip); Clip Delete (Single Clip, All Clips, Last Clip)
Still Image Playback: Index, Single Playback, Erasure, Protect |
| Frame Rates |
50 Mb/s: 1920 x 1080
Record Rate: 1-30 fps (Playback Rate: 29.97p/23.98p/24.00p)
Record Rate: 1-25 fps (Playback Rate: 50i/25p)
50 Mb/s: 1280 x 720
Record Rate: 1-60 fps (Playback Rate: 59.94p/29.97p/23.98p/24.00p)
Record Rate: 1-50 fps (Playback Rate:50p/25p)
35 Mb/s: 1920 x 1080
Record Rate: 1-30 fps (Playback Rate: 29.97p/23.98p/24.00p)
Record Rate: 1-25 fps (Playback Rate: 50i/25p)
35 Mb/s: 1280 x 720
Record Rate: 1-60 fps (Playback Rate: 59.94p/29.97p/23.98p/24.00p)
Record Rate: 1-50 fps (Playback Rate:50p/25p)
25 Mb/s: 1440 x 1080
Record Rate: 1-30 fps (Playback Rate: 29.97p/23.98p) |
| Interval Recording |
Interval can be set in 25 levels ranging from 1 second to 10 minutes (1/2/3/4/5/6/7/8/9/10/15/20/30/40/50 sec; 1/2/3/4/5/6/7/8/9/10 min)
NTSC 59.94i/29.97p/23.98p/24.00p: Selectable between 1, 3, 6, 9 frames
NTSC 59.94p: Selectable between 2, 6, 12 frames
PAL 50i/25p/50p: Selectable between 2, 6, 12 frames |
| Frame Record |
NTSC 59.94i/23.98p/24.00p: Selectable between 1, 3, 6, 9 frames
NTSC 59.94p: Selectable between 2, 6, 12 frames
PAL 50i/25p/50p: Selectable between 2, 6, 12 frames |
| Pre-Record Buffer |
3 sec cache (video & audio) |
| Still Capture |
1920 x 1080 images captured to SD card |
| Custom Picture |
23 custom picture settings
A total of nine 9 customized pictures are available in the camera and up to 20 can be saved to an SD card
Custom pictures CP7, CP8 and CP9 ship with the following preset:
C7: Video.C - Intended for recording media for playback on consumer TVs. The setting minimizes noise in the dark areas and improves contrast by tightening up on black
C8: Cine.V - Suited for giving recorded media a film tone
C9: Cine.F - Used for when recorded media will be transferred to film |
| Custom Function |
9 total functions available |
| Assignable Buttons |
15; can be assigned from among 30 functions |
| Color Bars |
Color bars compliant with SMPTE, EBU, or ARIB standards can be selected |
| Dynamic Mesafe |
Up to 800% with Canon Log gamma and ISO 850 (+2.5 dB) and above |
| Minimum Illumination |
Full Auto Mode: Not specified by manufacturer Manual Mode: Not specified by manufacturer |
| Video Outputs |
HD/SD-SDI: 1x BNC (output only), with embedded audio
HD 4:2:2 (YCbCr) 1920 x 1080: 60i/50i, 1280 x 720: 60p/50p
SD 4:2:2 (YCbCr) 640 x 480: 60i/50i
NTSC 480i/PAL 576i: Compliant with SMTPE 259M
Embedded Audio: Compliant with SMTPE 272M
Time Code Standard: (VITC/LTC) SMTPE 12M
HD-SDI: (Compliant with SMTPE 292M)
1080i/720p: Compliant with SMTPE 292M
Embedded Audio: Compliant with SMTPE 299M
Time Code Standard: (VITC/LTC) SMTPE 12M
Composite: 1x BNC (same as above)
HDMI: 1x Type A
|
| Headphone Connector |
3.5mm stereo mini-jack |
| Genlock |
BNC (input only)
Adjustment Mesafe: -1023 to +1023 |
| Timecode |
BNC (input/output)
Drop Frame (DF) and Non-Drop Frame (NDF)
Time Code Modes: Regen, Record Run, Free Run, and External Source 3
Please Note:
Drop Frame works with NTSC modes only and is not available in 24p
close
|
| Sync |
BNC connector (output)
HD tri-level signal (HD Sync)
HD-Y signals (HD-Y)
Black Burst signal
Composite |
| Remote |
2.5mm LANC-compatible terminal |
| Wi-Fi |
WFT terminal for compatible Wi-Fi accessory |
| Power Supply |
7.4V DC (battery pack), 8.4V DC (DC input) |
| Çalışma Aralığı(Sıcaklık) |
Performance: 32 to 104°F (0 to 40°C), 85% relative humidity
Operation: 23 to 113°F (-5 to 45°C), 60% relative humidity |
| Ölçüler (WxHxD) |
EOS C300 PL + Thumb Rest: 5.2 x 7.0 x 7.0" (133 x 179 x 177mm)
EOS C300 PL + Grip: 6.9 x 7.0 x 7.0" (174 x 179 x 177mm)
Camera + Monitor: 7.3 x 9.8 x 7.4" (185 x 249 x 187mm)
Camera + Handle + Monitor: 7.3 x 11.2 x 11.9" (185 x 284 x 301mm) 4
Please Note:
Not including lens hood, eyecup, or grip belt
close
|
| Ağırlık (without Lens) |
EOS C300 PL: 3.6 lb (1.63 kg)
Grip: 8.1 oz (230 g)
Monitor Unit: 1.4 lb (620 g)
Handle Unit: 6.3 oz (180 g)
Thumb Rest: 0.35 oz (10 g)
BP-955 Batarya: 7.8 oz (220 g)
Attachment Fitting: 0.32 oz (9 g)
2x CF Cards (not included): 0.63 oz (18 g)
Measure Hook: 0.11 oz (3 g)
Body Cap, Camera Cover (either type): 0.63 oz (18 g)
EOS C300 PL with Grip, Monitor, BP-955 & 2x CF Cards: 6.0 lb (2.72 kg)
EOS C300 PL with Grip, Monitor, Handle, BP-955 & 2x CF Cards: 6.4 lb (2.90 kg) |
